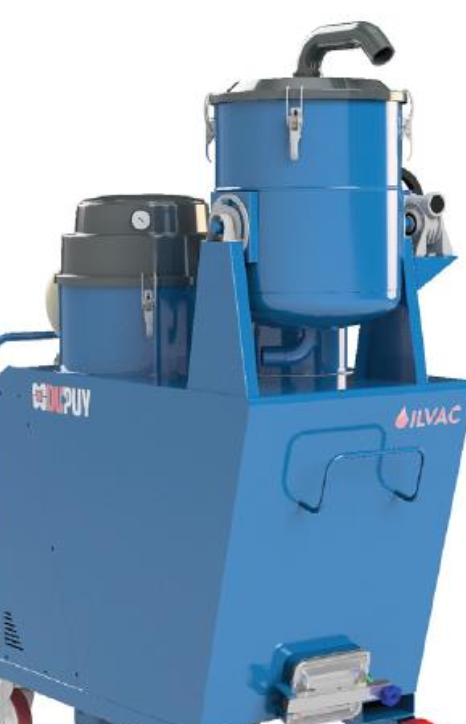

Industrial Vacuum Cleaner for Oil & Metal Chips Recovery

Suction

The vacuum unit is equipped with a powerful side channel blower in parallel, with high power water lift and powerful flowrate, ideal for continuous operation. The motor is directly connected to the fan and requires no maintenance.
The large coolant tank is equipped with an electro-mechanical float which stops the suction process once maximum level has been reached. A PPL and polyurethane filter protects the motor from solid particles and vapours.

Filtration/Separation

This vacuum unit is equipped with a tilting container which allows safe, fast and clean discharge of the collected chips. The sieve grid basket inside the container separates the solid material (chips and metallic swarf) and the liquid (oil and emulsion) then flows into the coolant containment tank. Upon request a secondary fine filtration stage is available (DF version) which consists in 2 cylinders containing filter bags with a filtration range of 60 to 20 micron (nominal).

Coolant Discharge

A powerful independent pump with 300 lt/min. flowrate and protected inside a metallic casing, rapidly discharges the liquid.
An external visual level allows the operator to constantly monitor the level of the suctioned liquid.

The vacuum unit is mounted on a sturdy structure with forklift intakes and is equipped with brake-wheels and a practical accessories basket.

Applications and Advantages

✓ Suction from machine tools of oils and coolants mixed with metal chips or other solid material

• ✓  Filtration and recovery of cutting oil and coolant liquid

• ✓  Rapid collection and disposal of the filtered liquid

• ✓  Reduced stand-by time of machine tools

• ✓  Savings by recovering and recycling the same oil and coolant

• ✓  Possibility to suction and pump out simultaneously

• ✓  Need for just one operator to use the machine
