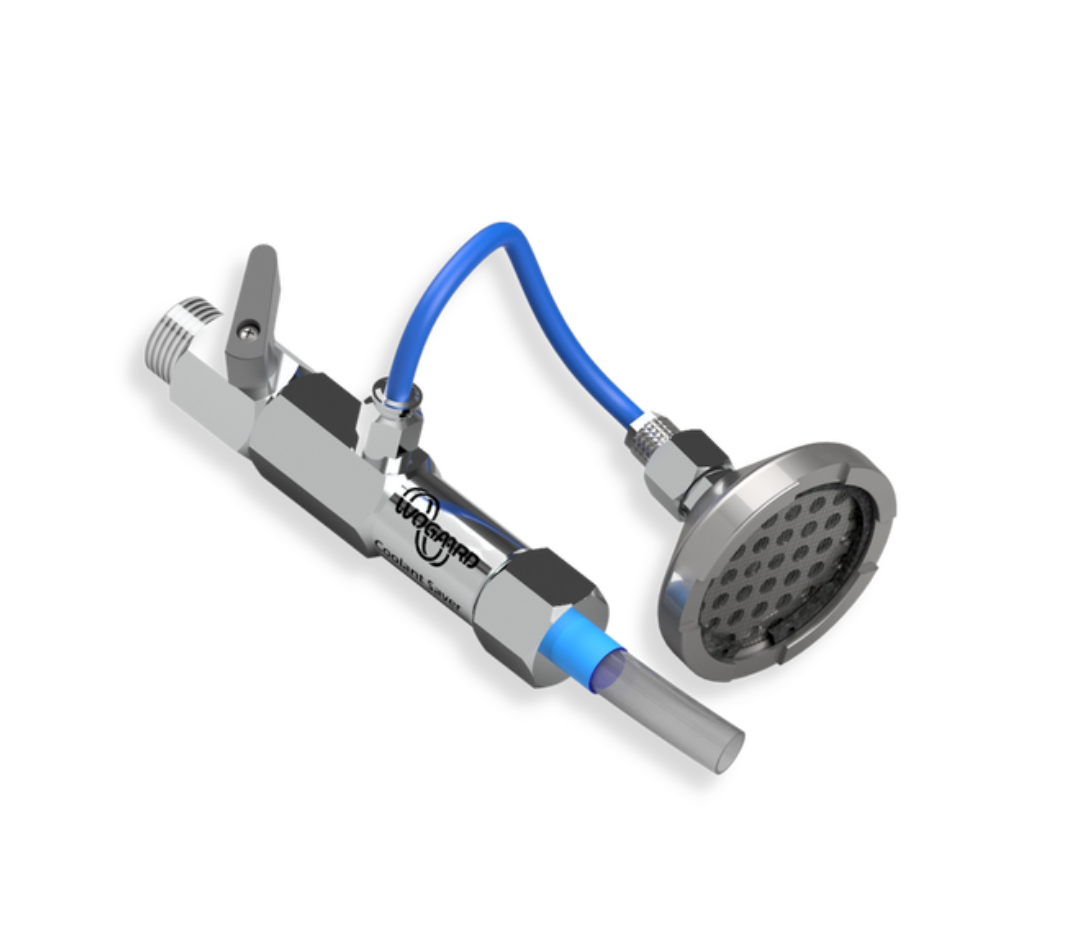

The Coolant Saver

Specially designed for soluble coolant applications and possible to install in a wide range of CNC machines, the Coolant Saver will allow you to reduce, reuse and recycle the coolant that is dragged out into the swarf bins from the conveyor.

The Coolant Saver Kit Contains :

• Coolant Saver Unit
• Vacuum (Filtered) with 3m 6mm PU Hose *can be increased as much as 10 metres
• 1.5m - 12mm Hose Outlet
• Fittings - 1/2' & 3/4' T & Straight fitting Kit
• Full step by step Guide *Technical Support available.
• 1 Year Warranty.

Typical Application:

• Soluble Coolant on machines with Conveyors.
• Neat oil up to 12cs on Sliding head low rated pumps.

Specification:

• ​Operating Pressure - 1 to 45 Bar (not for use on higher pressure pumps)
• Suction Capacity  -0.5 to -0.8bar (Valve control)
• Collection Rate - Approx. 1Litre/min
• Mounting - Can be used on Floor, waist or head high pumps to approx. 3m Height
• Collection Tube Length - Vacuum Cup can be up to 10m from Coolant saver unit
